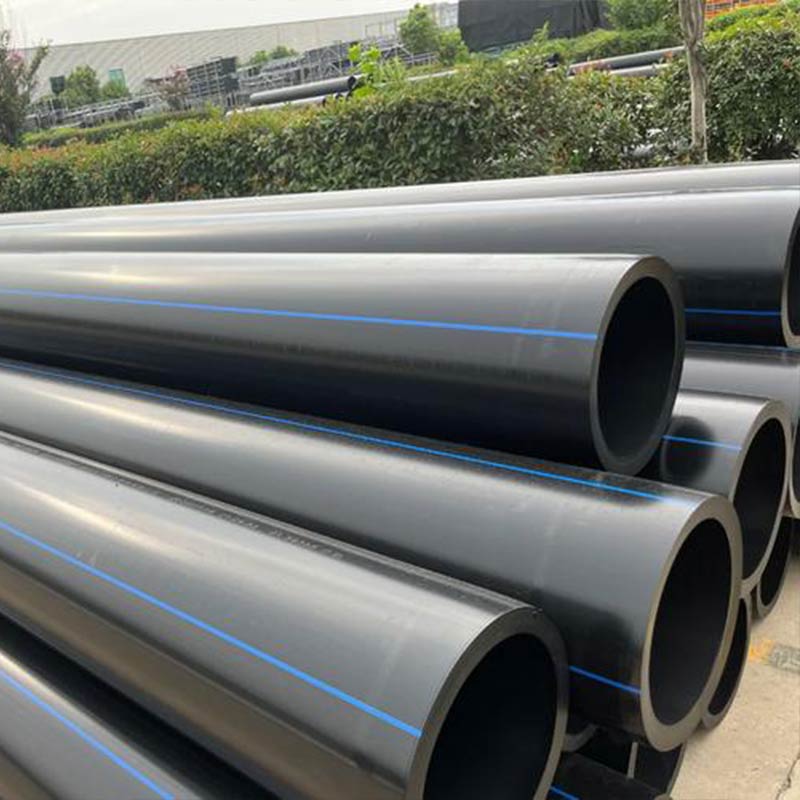

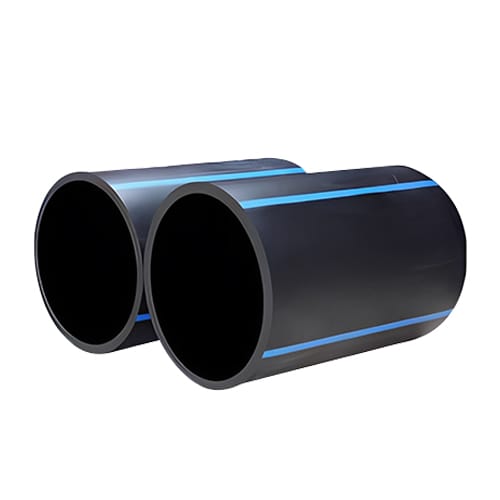

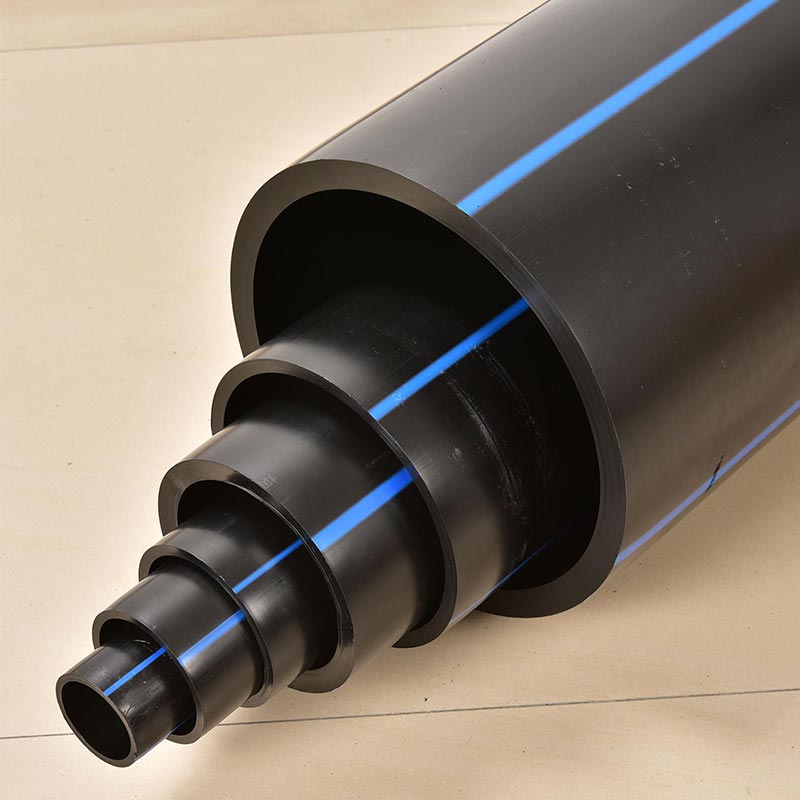

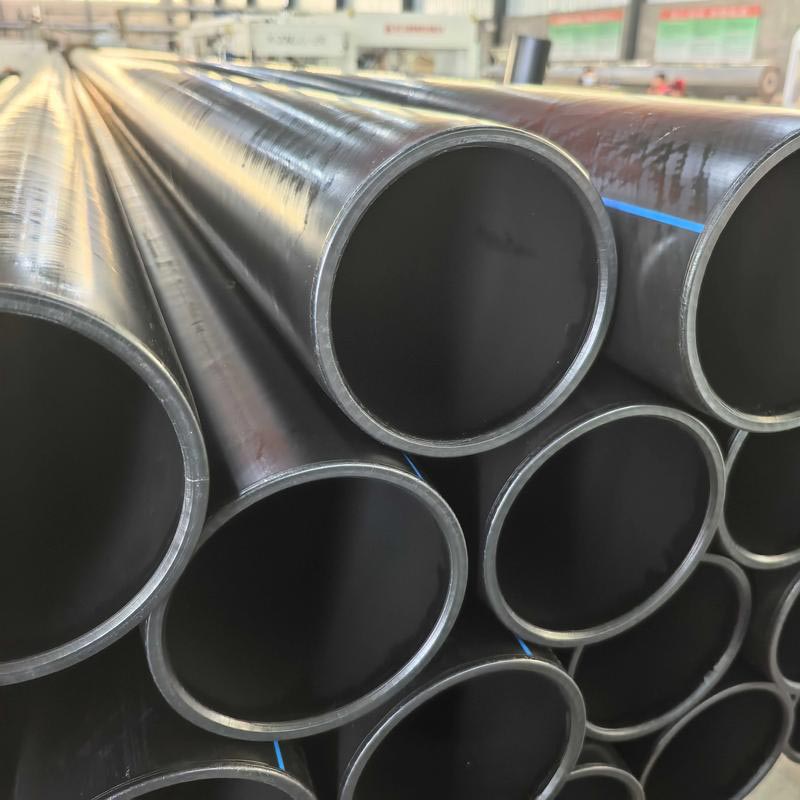

Widely used in municipal water supply systems, building water supply systems, underground water supply systems in residential areas and factories, and industrial water treatment pipelines. This pipeline boasts superior performance characteristics: long service life, exceeding 50 years under normal conditions; excellent hygienic properties, non-toxic, free of heavy metal additives, non-scaling, and non-bacterial, effectively preventing secondary pollution of drinking water; resistant to corrosion from various chemical media, with no electrochemical corrosion; smooth inner wall, extremely low coefficient of friction, enhancing fluid transport capacity and providing strong wear resistance; excellent flexibility and impact resistance, able to withstand strong earthquakes and torsion; lightweight, facilitating transportation and installation. Unique electrofusion and thermofusion butt welding technologies ensure that the pipe joint strength is higher than the pipe body, guaranteeing a safe and reliable connection. The overall welding process is simple, construction is convenient, and overall project costs are reduced. This pipeline is an ideal choice for ensuring water quality safety and improving the stability of pipeline systems.
Product applications: Municipal water supply systems, building water supply systems, underground water supply systems in residential communities and factories, industrial and water treatment pipeline systems, etc.
Straight/Coil PE100 pipes are generally available in standard lengths of 6 meters or 8 meters, while other lengths require custom production.
Main features:
1.Long service life. Under normal conditions, the minimum lifespan is 50 years.
2.Excellent hygiene. PE pipes are non-toxic, free from heavy metal additives, do not scale, and do not breed bacteria, effectively solving the problem of secondary pollution of drinking water.
3.Resistant to corrosion from various chemical media; no electrochemical corrosion.
4.Smooth inner wall with extremely low friction coefficient, resulting in improved medium flow capacity and excellent wear resistance.
5.Good flexibility, high impact resistance, and resistance to strong earthquakes and twisting.
6.Light weight, convenient for transportation and installation.
7.Unique electric fusion and hot fusion butt welding, hot fusion socket connection technologies ensure joint strength higher than the pipe body, guaranteeing safe and reliable connections.
8.Simple welding process, convenient construction, and low overall project cost.
| Water Supply Pipe PE-100 | |||||
| Nominal Outer Diameter dn（mm） | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| Nominal Pressure PN, MPa | |||||
| 0.6 | 0.8 | 1.0 | 1.25 | 1.6 | |
| Nominal Wall Thickness | Nominal Wall Thickness | Nominal Wall Thickness | Nominal Wall Thickness | Nominal Wall Thickness | |
| 20 | / | / | / | / | 2.3 |
| 25 | / | / | / | / | 2.3 |
| 32 | / | / | / | / | 3.0 |
| 40 | / | / | / | / | 3.7 |
| 50 | / | / | / | / | 4.6 |
| 63 | / | / | / | 4.7 | 5.8 |
| 75 | / | / | 4.5 | 5.6 | 6.8 |
| 90 | / | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | / |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | / |
| 900 | 34.4 | 42.9 | 53.3 | / | / |
| 1000 | 38.2 | 47.7 | 59.3 | / | / |
| 1200 | 45.9 | 57.2 | 70.6 | / | / |
