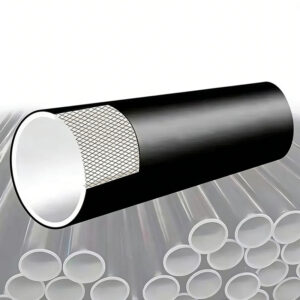

This steel wire mesh reinforced composite pipe features a three-layer structure: an inner layer of PE plastic, a middle layer of wound steel wire mesh, and an outer layer of PE plastic. It boasts excellent pressure resistance, creep resistance, and high rigidity. Compared to ordinary plastic pipes, it has stronger impact resistance, a coefficient of linear expansion closer to that of steel pipes, and is less prone to deformation. The pipe’s inner wall is smooth and scale-free, resulting in low water flow resistance and high transport efficiency. It also combines the advantages of plastic pipes, such as corrosion resistance, wear resistance, light weight, and convenient construction. Utilizing electrofusion connection, it allows for rapid installation and ensures leak-free joints. The composite structure effectively prevents stress cracking in plastic pipes, and the product’s lifespan can reach 50 years under normal operating conditions.
Product Material: Inner layer PE plastic, wound steel wire mesh, outer layer PE plastic
Nominal Pressure: 1.0MPa, 1.6MPa, 2.0MPa, 2.5MPa
Main Features:
1. Higher pressure resistance and creep resistance.
2. Higher rigidity and impact resistance than ordinary pure plastic pipes, with a low coefficient of linear expansion similar to steel pipes.
3. Smooth inner wall, no scaling, low water flow friction resistance, large water delivery capacity, and reduced energy consumption.
4. Good corrosion resistance; the inner and outer layers are plastic, providing the same excellent corrosion resistance as plastic pipes.
5. Lightweight, easy to load, unload, and transport.
6. Electrofusion connection, quick and convenient construction, leak-proof joints.
7. Due to its composite structure of steel and plastic, it overcomes the rapid stress cracking phenomenon of plastic pipes.
8. Good wear resistance; service life of 50 years under normal use.
Product Applications:
1. Municipal Engineering: Water supply and drinking water transportation for urban buildings;
2. Chemical Industry: Process pipes and discharge pipes for transporting corrosive liquids in industries such as acid, alkali, and salt manufacturing, textiles, and printing and dyeing;
3. Metallurgy and Mining: Transportation of corrosive media in mining, non-ferrous metal slurry, and non-ferrous metal smelting;
4. Oil and Gas Fields: Long-distance pipeline transportation of oil and water;
5. Agricultural Irrigation Pipes.
| Nominal Outer Diameter Dn (mm) | Nominal Pressure (Mpa) | ||||||
| 0.8 | 1.0 | 1.25 | 1.6 | 2.0 | 2.5 | 3.5 | |
| Nominal Wall Thickness (mm) | |||||||
| 50 | / | / | / | 4.5 | 5.0 | 5.5 | 5.5 |
| 63 | / | / | / | 4.5 | 5.0 | 5.5 | 5.5 |
| 75 | / | / | / | 5.0 | 5.0 | 5.5 | 6.0 |
| 90 | / | / | / | 5.5 | 5.5 | 5.5 | 6.0 |
| 110 | / | 5.5 | 5.5 | 7.0 | 7.0 | 7.5 | 8.5 |
| 140 | / | 5.5 | 5.5 | 8.0 | 8.5 | 9.0 | 9.5 |
| 160 | / | 6.0 | 6.0 | 9.0 | 9.5 | 10.0 | 10.5 |
| 200 | / | 6.0 | 6.0 | 9.5 | 10.5 | 11.0 | 12.5 |
| 225 | / | 8.0 | 8.0 | 10.0 | 10.5 | 11.0 | / |
| 250 | 8 | 10.5 | 10.5 | 12.0 | 12.0 | 12.5 | / |
| 315 | 9.5 | 11.5 | 11.5 | 13.0 | 13.0 | / | / |
| 355 | 10 | 12.0 | 12.0 | 14.0 | / | / | / |
| 400 | 10.5 | 12.5 | 12.5 | 15.0 | / | / | / |
| 450 | 11.5 | 13.5 | 13.5 | 16.0 | / | / | / |
| 500 | 12.5 | 15.5 | 15.5 | 18.0 | / | / | / |
| 560 | 17 | 20.0 | / | / | / | ||
| 630 | 20 | 23.0 | / | / | / | ||
